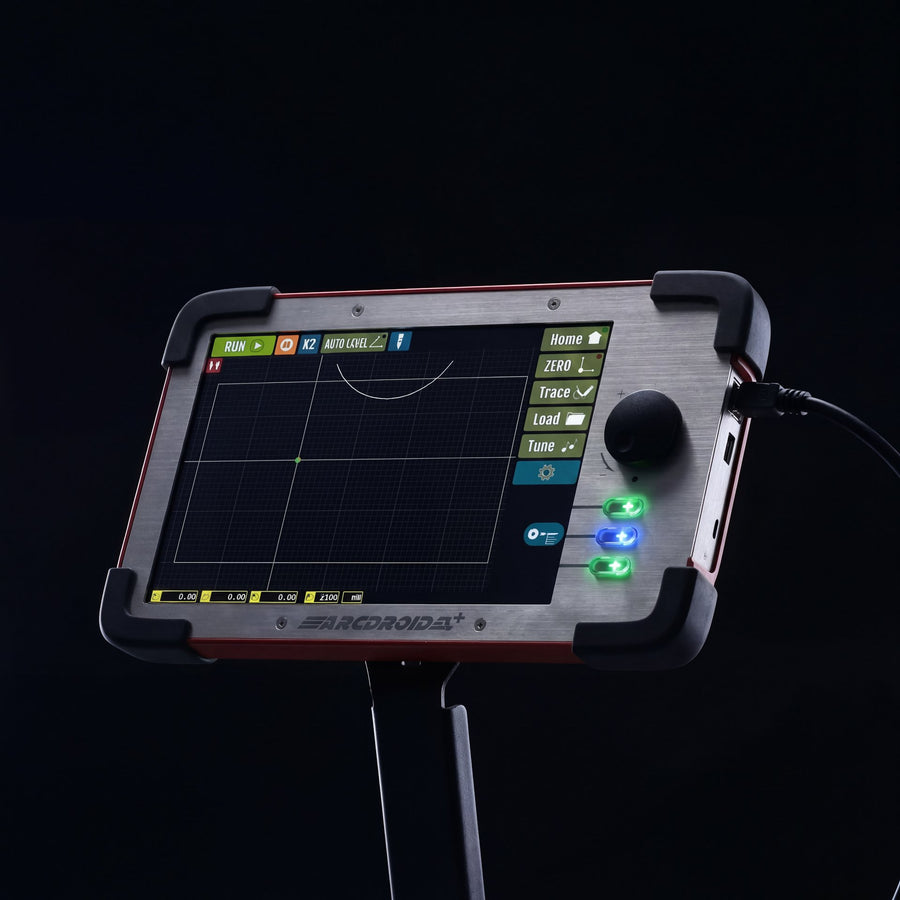

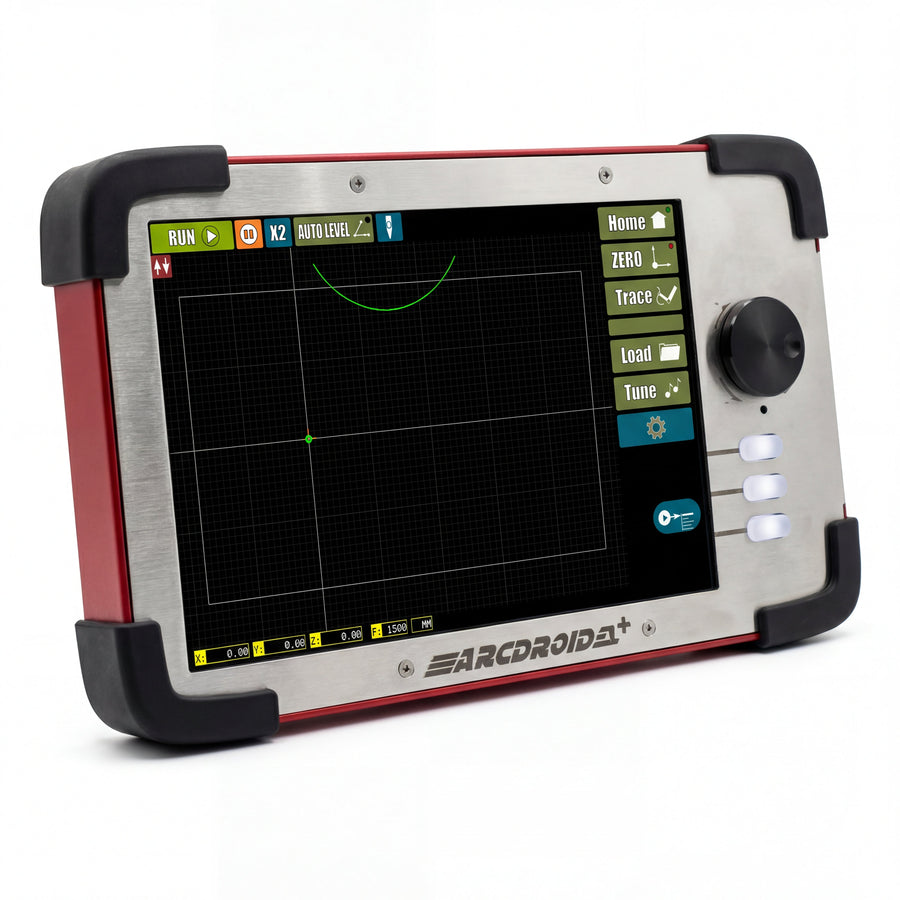

ArcDroid™ PLUS Controller — Next-Gen Upgrade
The ArcDroid™ PLUS is a drop-in controller upgrade that transforms your ArcDroid into a more powerful, more capable cutting machine.
Bigger Screen. Bigger Brain.

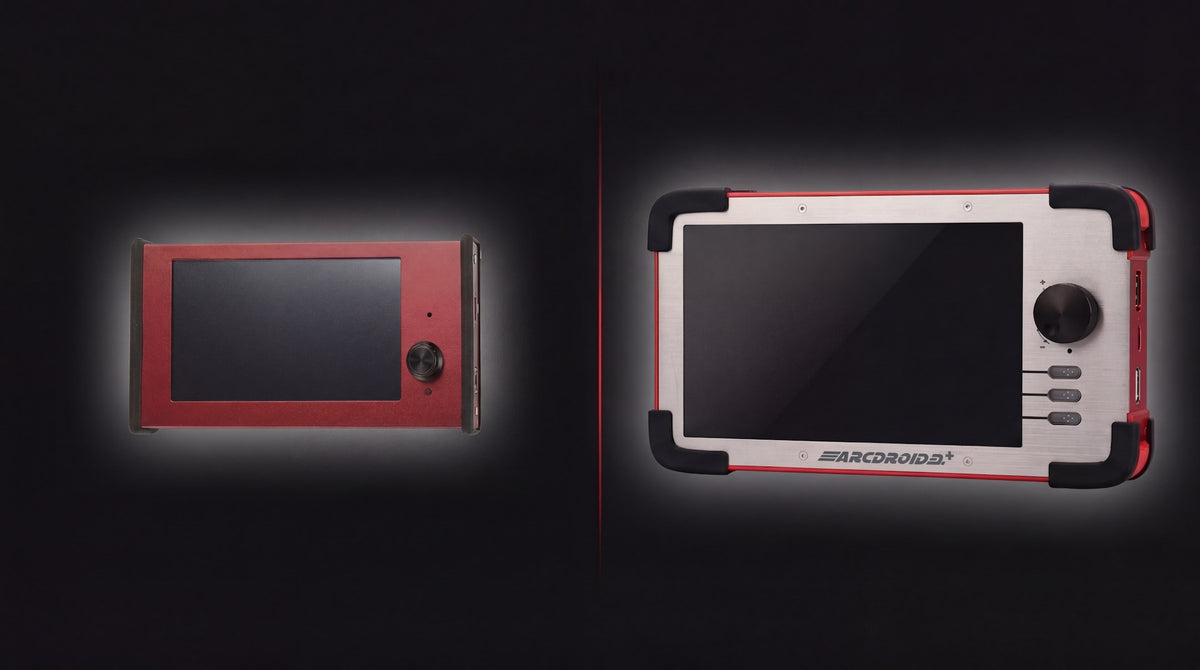

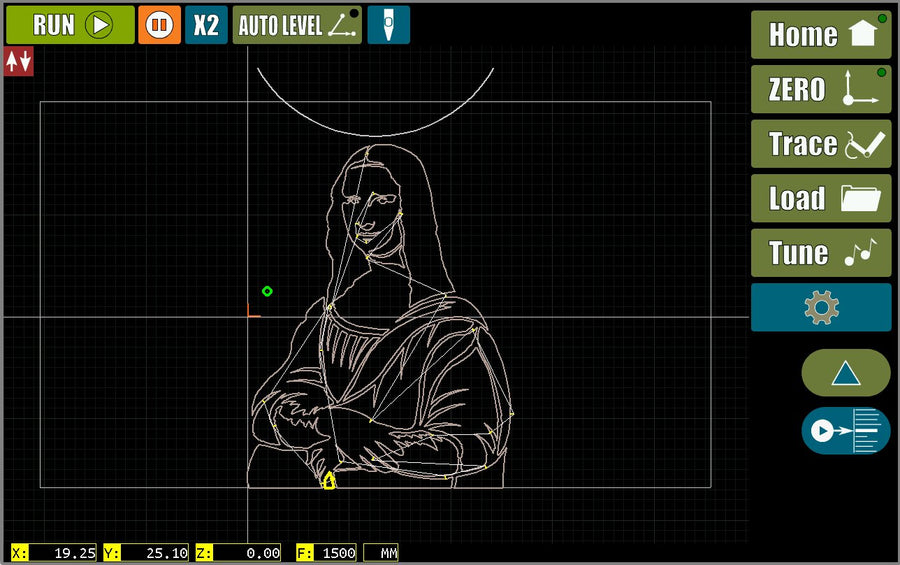

A 10" high-resolution capacitive touchscreen replaces the standard controller, giving you more room to see your designs and work with complex files. Under the hood, 8x the memory means Simple Trace Plus can handle designs up to 8 times more complex than before — no more simplifying your parts to fit.
New Features That Matter

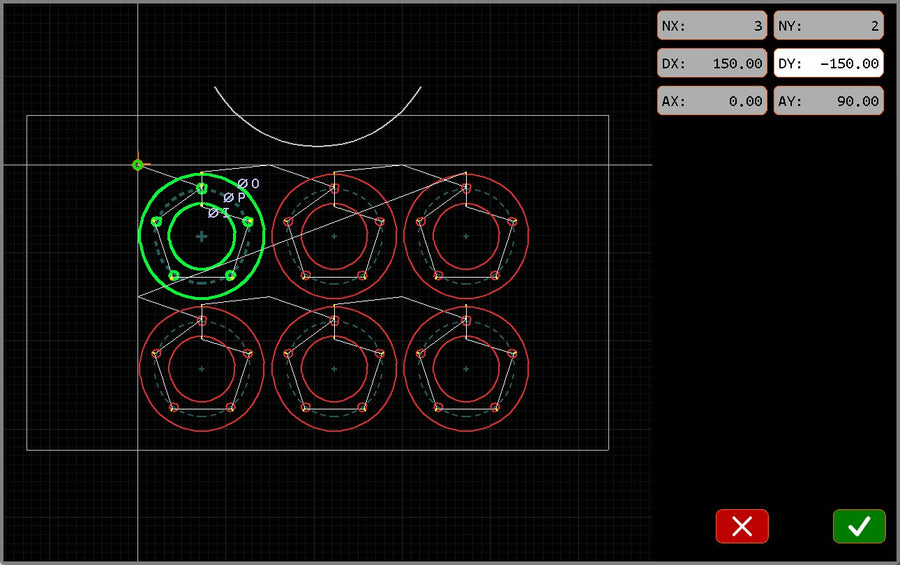

Simple Trace Plus — The same intuitive tracing workflow you already know, now with support for massively more complex geometry. Lines, 3-point arcs, tangent arcs, splines, plus built-in patterning for arraying parts across your table.

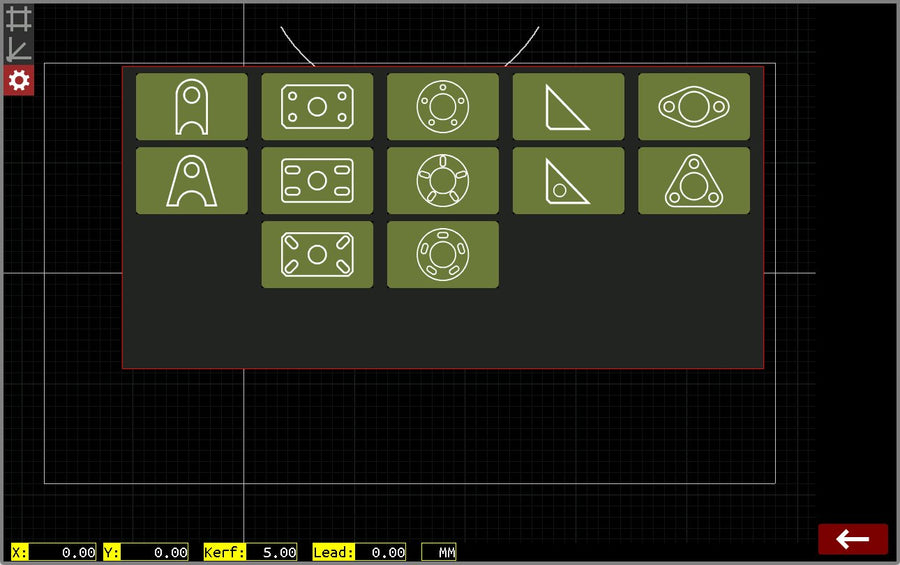

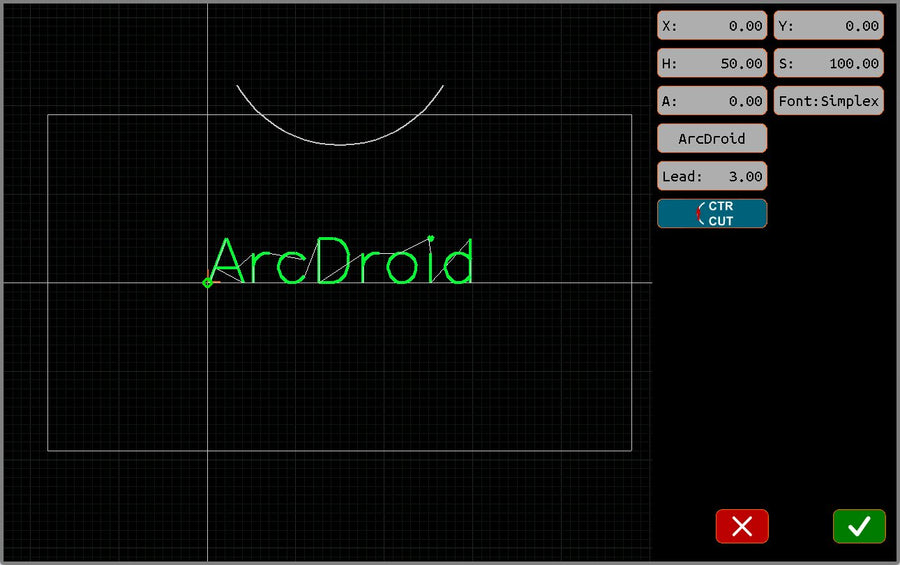

Shapes, Text & Library — Circles, rectangles, polygons, hole patterns, parametric templates for common flanges, tabs and gussets, and on-screen text in 3 fonts. Design right on the controller without ever touching a computer.

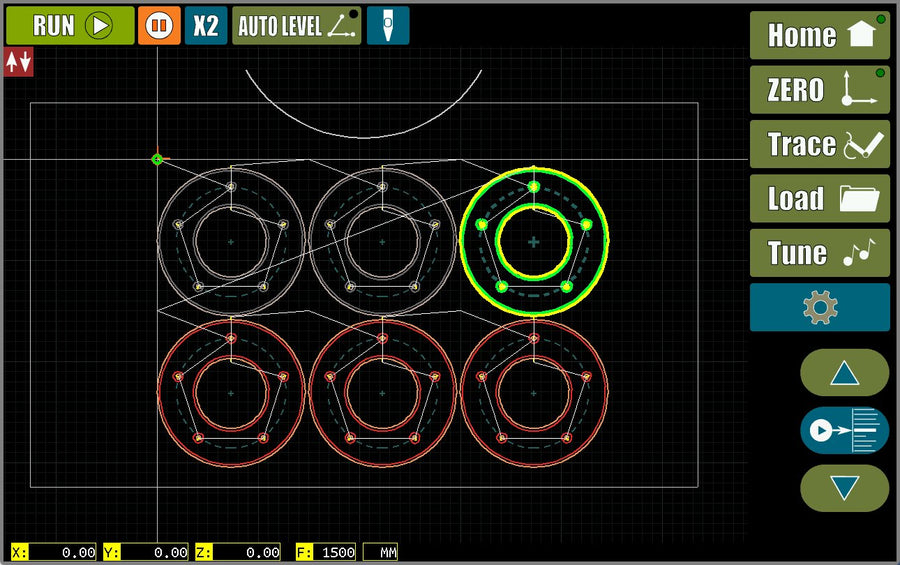

Run From Here — Pick up exactly where you left off. Index through shapes in your file, see what's been cut and what's queued, and start your session from any point in the program.

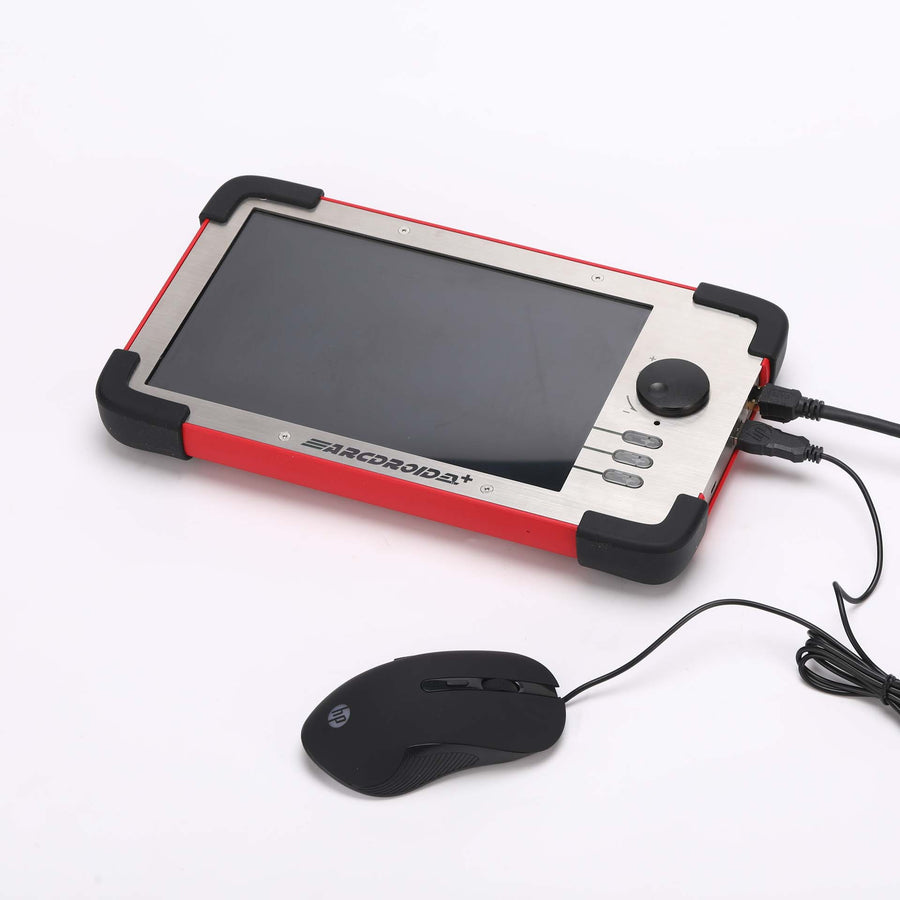

Standalone Mode — Plug in USB-C power and a USB mouse to use the controller as a standalone design station, no robot arm required. Great for programming jobs at your desk.

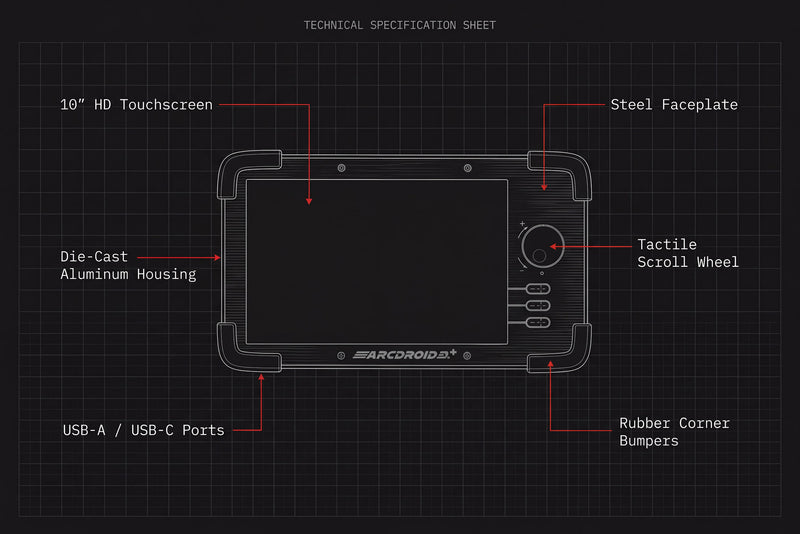

Hardware
- 10" 720×1280 HD capacitive touchscreen
- Tactile scroll wheel for jogging and menu navigation
- 3 contextual function buttons

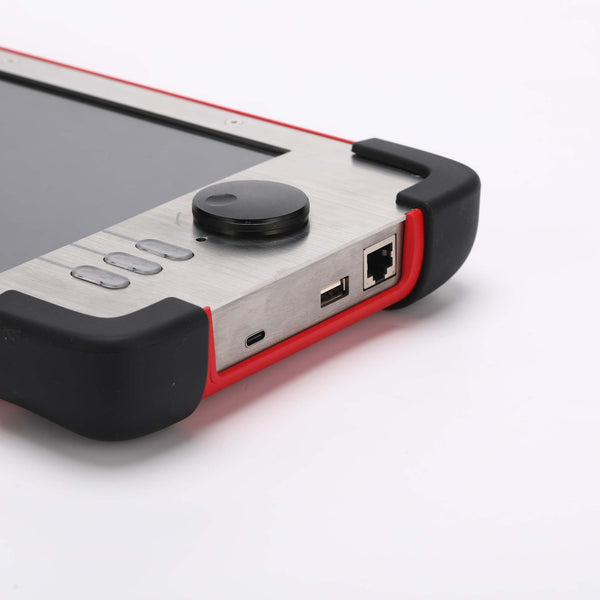

- USB port for G-code/DXF loading and firmware updates
- USB-C power input for standalone use
- High-speed controller port for ArcDroid robot arm
What's in the Box
ArcDroid™ PLUS Controller unit, Quick-Start Guide
Compatibility
The ArcDroid PLUS is a controller upgrade for all ArcDroid™ CNC plasma cutting robot arms.
Tech specs
- Cut envelope: 26" × 15" — extendable with the X2 indexing system
- Max cut speed: 200 in/min
- Total weight: under 35 lbs
- Setup time: under 5 minutes
- Torch compatibility: most low-frequency (blowback) start plasma cutters
In the box
- ArcDroid CNC plasma robot
- Simple Trace controller with stylus
- Torch mount hardware kit
- Regional plug set for your variant
- USB drive with sample cut files
- Quick-start guide
Warranty and returns
Every ArcDroid is covered by a 1-year manufacturer warranty with real human support and free software updates for life. Replace this placeholder with your full warranty and returns policy.
Common Questions
Will it work with my plasma cutter?
Probably — most plasma cutters with a low-frequency (blowback) start work out of the box, and dozens of brands are on the tested list. If yours needs an adapter cable, the compatibility checker shows exactly which one. Check your cutter in 10 seconds.
Do I need to know CAD?
No. If you can trace a line, you can cut steel — Simple Trace turns a cardboard template or a hand sketch into a toolpath right on the controller, no computer required. Prefer digital? Load a DXF from USB and cut.
What power does it need?
The ArcDroid runs on standard wall power — 120V or 230V depending on the plug option you pick above. Your plasma cutter has its own power requirements, so check its spec sheet too.
How does shipping work in my region?
US orders ship from our US warehouse, EU orders from the Netherlands, and UK orders from our UK warehouse. Canadian orders check out at arcdroid.ca. Everywhere else, shipping is calculated at checkout.
What if it's not for me?
Every machine ships with a 1-year warranty, free software updates forever, and support from real humans who cut steel. If something is wrong with your order, contact us and we will make it right — see our returns policy for the fine print.
